[DIY Cat Wheel] 1. Wheel Part 1) First cut the wood to the same size as the picture. The thickness is 15mm. 2) Fix the wood with a bond. Make the shape of circle as possible. 3) Fix it with screws once more. 4) Fix the cat carpet with screws. If your cat is familiar with wood, you can skip the carpet. 2. Support Part 1) First cut the wood to the same size as the picture. The thickness is 15mm. 2) Fix the wood with screws as shown below. The position should be set according to the urethane wheels you want to use. 3) Fix the urethane wheels to support the weight of the catwheel. 4) Fix the side wheels. This wheel prevents the catwheel part and the support part from rubbing when the catwheel is moved in the horizontal direction. If there is no wheel, the part marked in red is rubbed. 3. Things to Improve 1) I want to change the thickness of the wood to 12mm. 15mm is too heavy. 2) I want to reduce the width of th

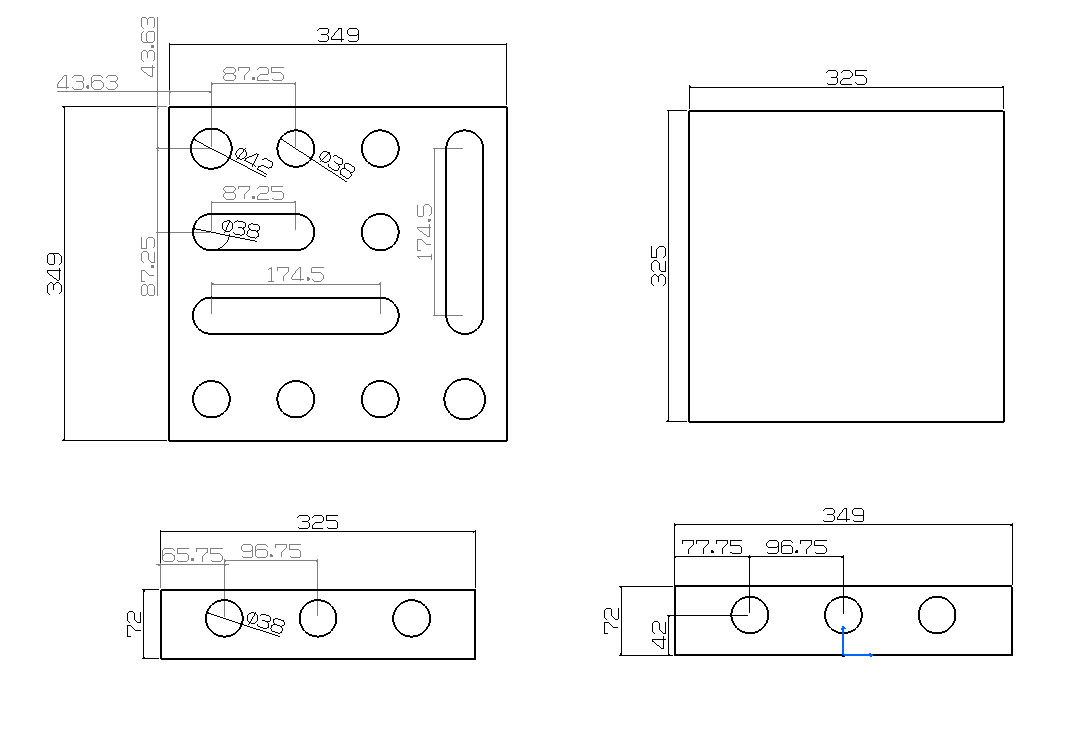

1) Cut the wood to the same size as the picture. The thickness is 12mm 2) Fix the woods and cat toy with the wood needle. 3) Fix the woods with screws 4) Pass the wooden rod through the hole to connect the cat toy part with the wood box part. 4) Cover the top plate with five holes.
1) Cut the wood to the same size as the picture. The thickness is 12mm. 2) Fix the woods with the glue as shown below. 3) Next, make a pillar. 4) Fix the cylinder between the columns. And wrap the rope around the cylinder for using it as a scratcher. 5) Make the second floor. The longest wood is 30 mm thick. 4) Install a hammock. 5) Place an invisible hemisphere on the third floor. The room size on the 3rd floor is the same as the 1st floor. http://itempage3.auction.co.kr/DetailView.aspx?ItemNo=A757530495&frm3=V2 6) Install a ladder. But my cat didn't use this. (260mm x 836mm) 8) Let's play :)
